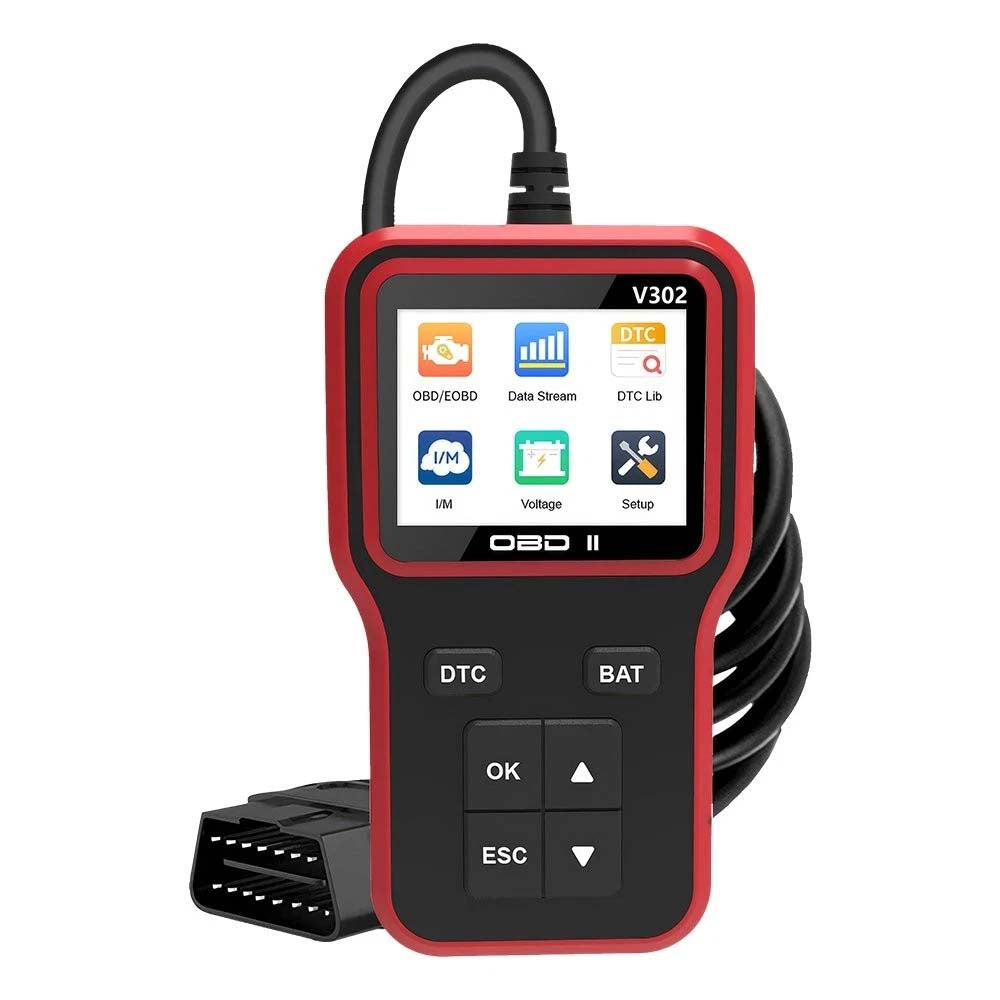

OBD2 Scanner Diagnostic Tool Engine Code Reader OBDII/EOBD Auto Scanner Car

Description

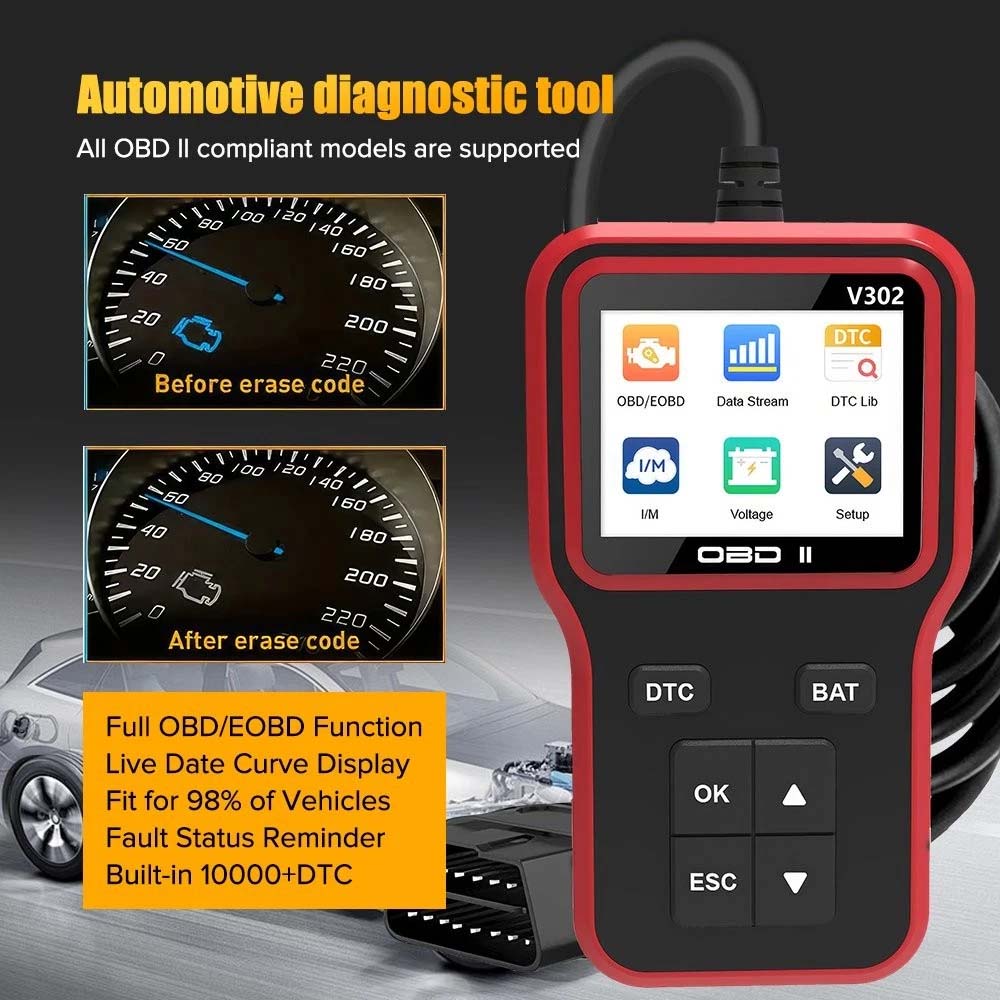

Monitor and manage your vehicle's engine diagnostics with this Plug-and-Play OBD2 Scanner Tool. Designed to draw power directly from the vehicle's OBD2 port, it requires no external batteries or applications. The device features a 2.8-inch HD color screen for reading engine fault codes, viewing live data streams, and performing standard system checks. Equipped with a comprehensive library of over 10,000 diagnostic trouble codes (DTC) and supporting 9 standard OBD2 protocols, this scanner offers a practical wired solution for routine vehicle maintenance and data retrieval across a wide range of global car models.

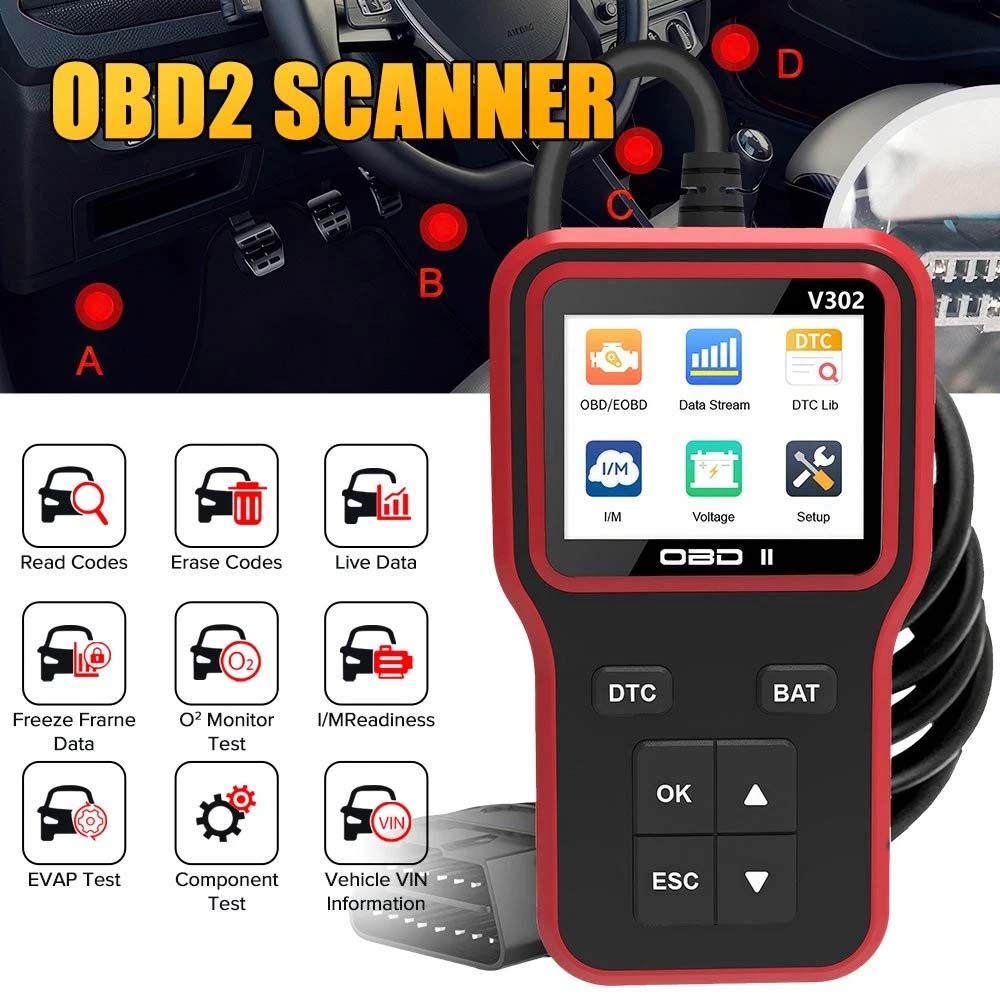

Features

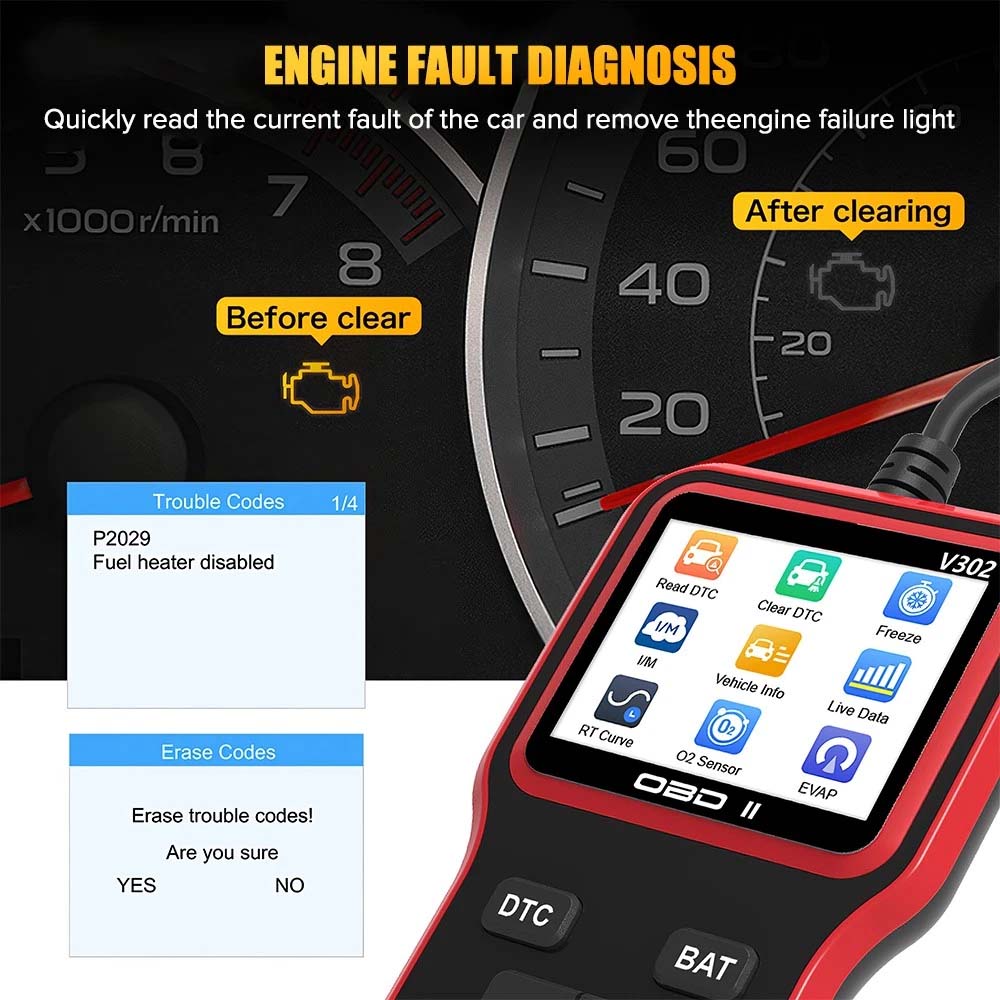

  • Diagnostic Code Management: Reads and clears engine fault codes, enabling users to turn off the check engine light on the dashboard after maintenance procedures are completed.

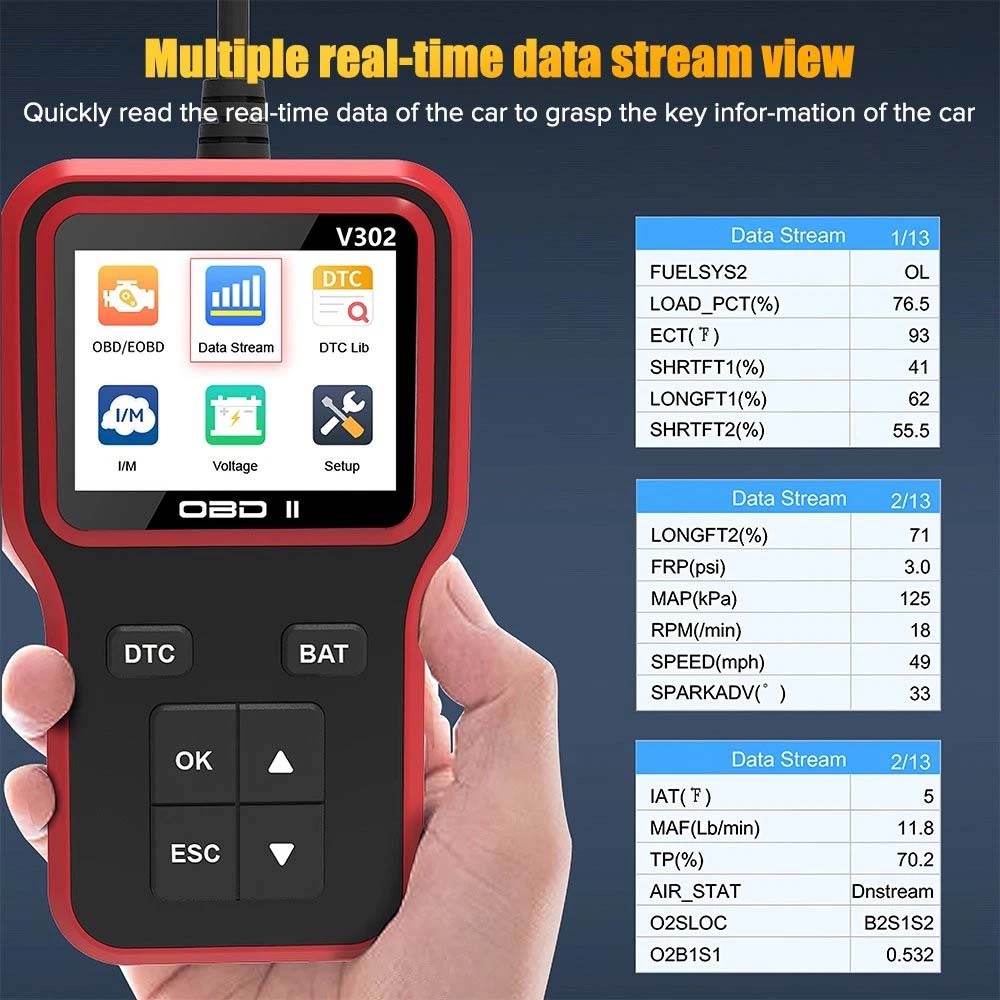

  • Live Data & Battery Monitoring: Displays dynamic real-time data, including vehicle speed and battery voltage, presented in a clear curve format for straightforward observation.
  • System Testing Capabilities: Features an I/M Readiness function to check misfires and fuel systems, assisting in emissions test preparation. It also includes EVAP testing for the fuel evaporation system and oxygen sensor monitoring.

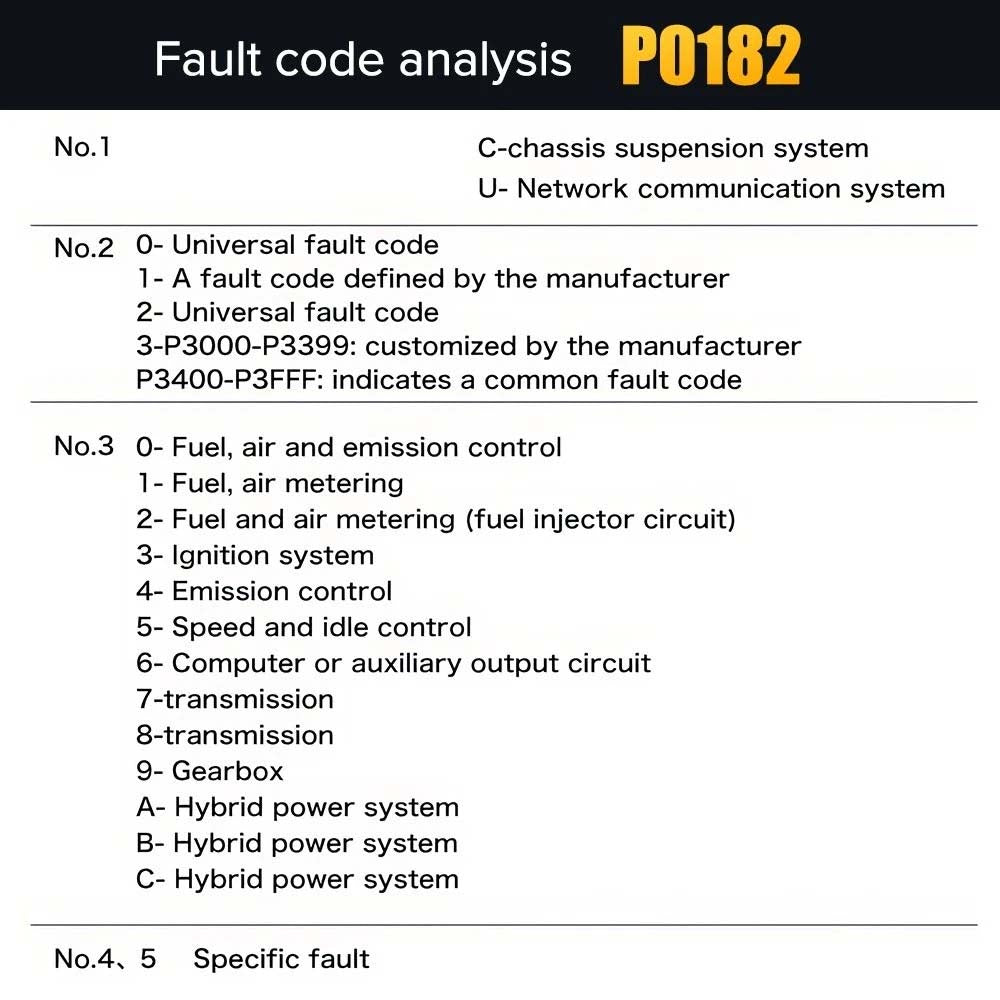

  • Extensive DTC Library: Built with a database of over 10,000 common fault codes, allowing users to view detailed definitions directly on the device without needing online searches.
  • Vehicle Information Retrieval: Automatically retrieves the Vehicle Identification Number (VIN), calibration ID, and calibration verification number for accurate parts replacement reference.

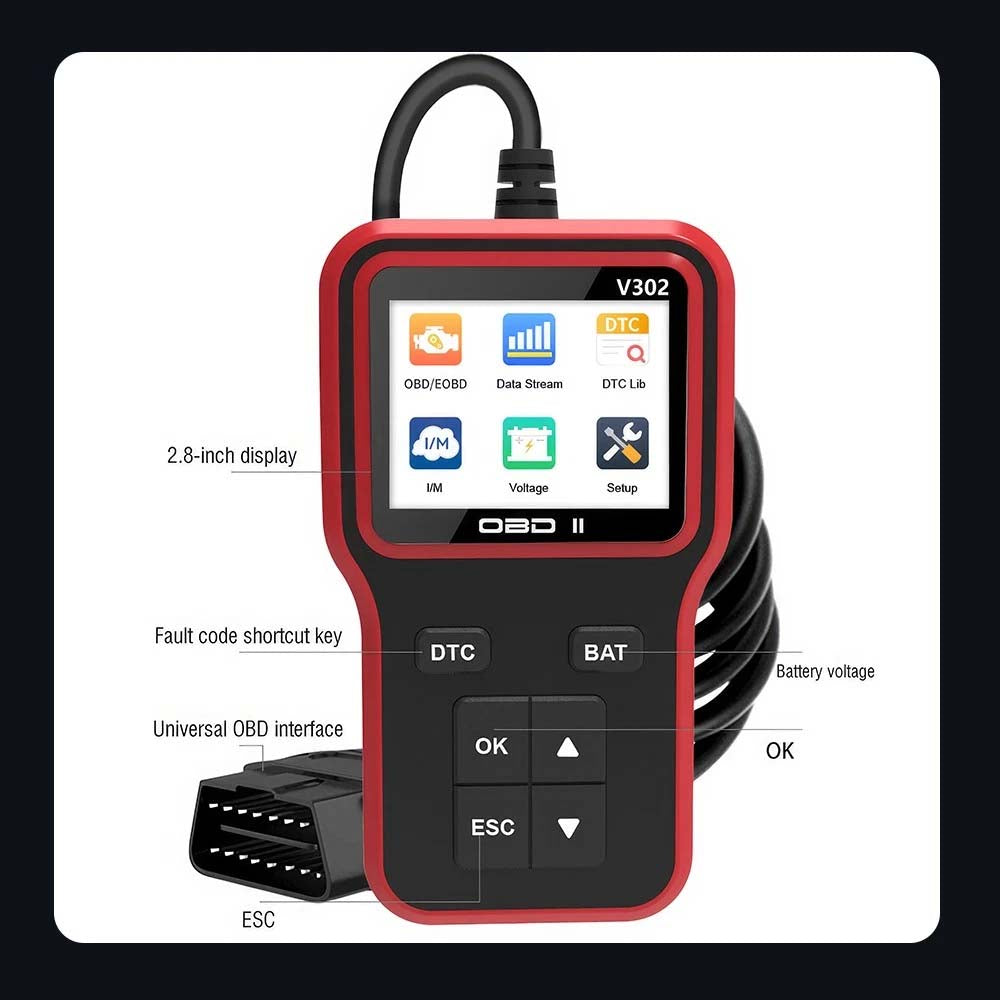

  • Direct & Intuitive Operation: Designed with a 2.8-inch color display for clear visibility and three physical status lights that provide immediate visual feedback. The plug-and-play setup ensures a steady wired connection.

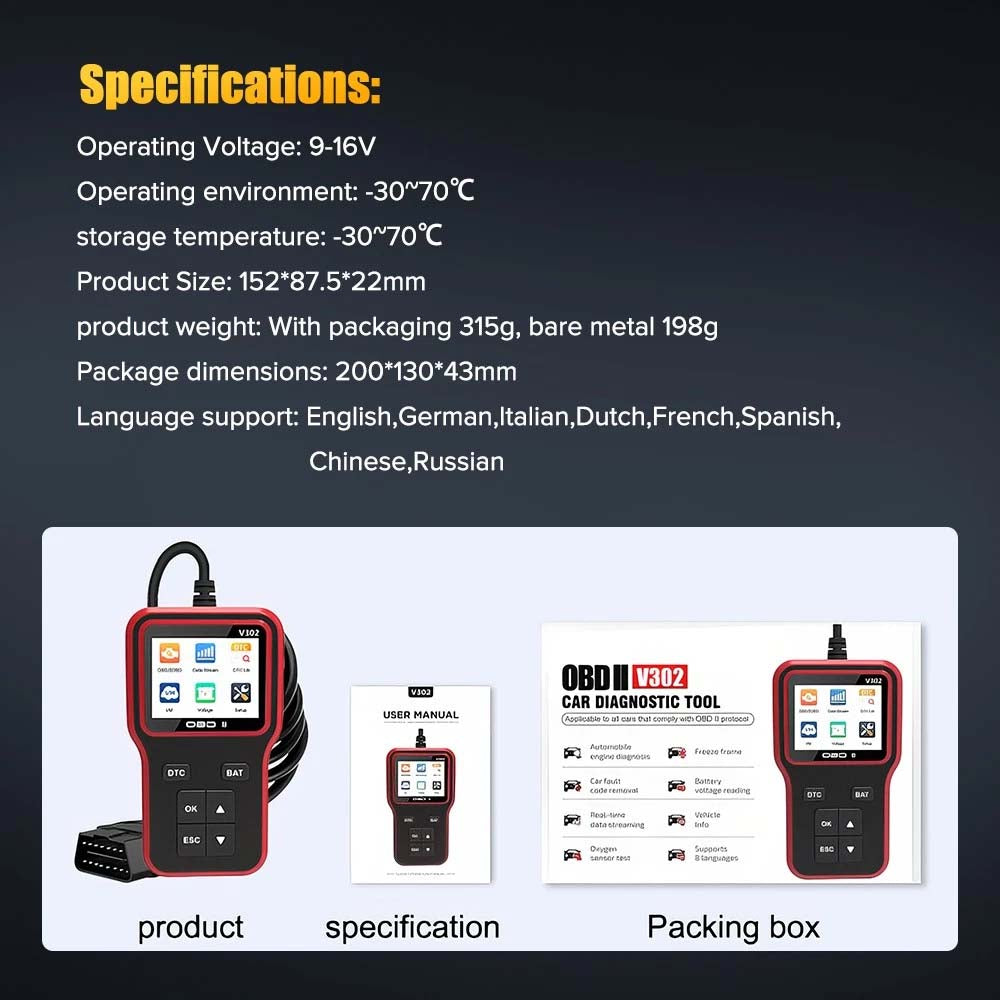

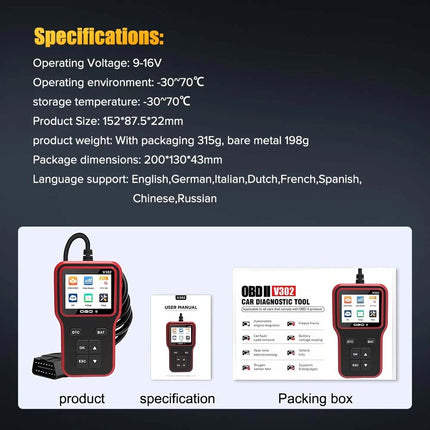

Specifications

  • Product Type: OBDII/EOBD Diagnostic Scan Tool
  • Display: 2.8-inch HD Color Screen
  • Operating Voltage: 9-16V
  • Operating Temperature: -30°C to 70°C
  • Storage Temperature: -30°C to 70°C
  • Dimensions: 152mm x 87.5mm x 22mm
  • Weight: 198g (Bare Metal) / 315g (With Packaging)
  • Supported Languages: English, German, Italian, Dutch, French, Spanish, Chinese, Russian
  • Supported OBD2 Protocols:
    • 1: SAE J1850 PWM (41.6Kbaud)
    • 2: SAE J1850 VPW (10.4Kbaud)
    • 3: ISO9141-2 (5 baud init, 10.4Kbaud)
    • 4: ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
    • 5: ISO14230-4 KWP (fast init, 10.4 Kbaud)
    • 6: ISO15765-4 CAN (11bit ID, 500 Kbaud)
    • 7: ISO15765-4 CAN (29bit ID, 500 Kbaud)
    • 8: ISO15765-4 CAN (11bit ID, 250 Kbaud)
    • 9: ISO15765-4 CAN (29bit ID, 250 Kbaud)
  • Vehicle Compatibility:
    • America (including Brazil): Vehicles released from 1996 to present
    • Europe: Vehicles released from 2004 to present
    • Asia (including Australia): Vehicles released from 2006 to present
    • Russia (Specific Models): Ssangyong Actyon (A200 XDI Diesel 2007-2017 / 2.4 Diesel 2009-2017); Korando (2.0 TD Diesel 2013-2017); Kyron (2.0 Diesel 2007-2017); Rexton (2.7 XVT Diesel 2007, 2011-2017); Rodius (2.7 Diesel 2007-2017); LADA Niva (1.7 Gasoline 2011-2017); LADA Priora (1.5 Gasoline 2008-2017)

Package Contents

  • 1 x OBD2 Detector
  • 1 x User Manual
