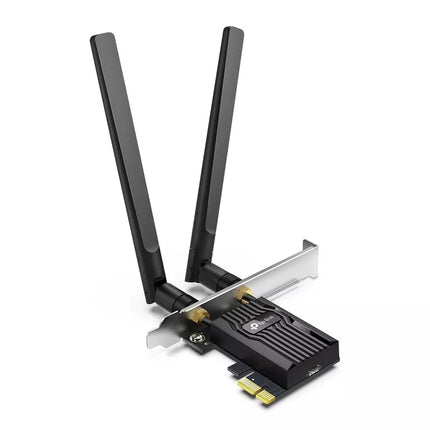

TP-Link Archer TX55E AX3000 WiFi 6 Bluetooth 5.2 Wireless Adapter Card PC Gaming

Description

Upgrade your desktop with next-generation connectivity using the Archer TX55E PCIe Wi-Fi 6 Adapter. Powered by an Intel® Wi-Fi 6 chipset, this advanced network card delivers ultra-fast speeds up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, effectively breaking the gigabit barrier. Equipped with Bluetooth 5.2 and dual high-gain external antennas, it ensures broader coverage, smoother gaming, faster downloads, and seamless streaming. Ideal for users seeking speed, stability, and future-ready wireless performance.

Features

  • Unrivalled Wi-Fi 6 Speed: Achieve up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz—perfect for ultra-fast downloads and 4K streaming.

  • Intel® Wi-Fi 6 Chipset: Delivers exceptional wireless performance with low latency and better device efficiency.

  • Dual High-Gain Antennas: Extend your Wi-Fi coverage for more stable and far-reaching connections.

  • Bluetooth 5.2 Support: Faster speed and broader range compared to previous Bluetooth versions.

  • Enhanced Security: Features the latest WPA3 protocol for advanced data and password protection.

  • Wider Compatibility: Backward compatible with 802.11 a/b/g/n/ac networks.

  • Premium Build Quality: Gold-plated components improve heat resistance and operational stability.

  • Low Profile Bracket Included: Designed to fit small or slim PC cases.

Specifications

Hardware Features

  • Dimensions: 2.4 x 1.4 x 0.45 in (55 x 36 x 11.5 mm)

  • Chipset: Intel® Wi-Fi 6

  • Antenna Type: Two High-Gain Dual Band External Antennas

Bluetooth Features

  • Standards Supported: Bluetooth 5.2, 5.0, 4.2, 4.0

  • Interface: F_USB 2.0

Wireless Features

  • Wireless Standards:

    • 5 GHz: IEEE 802.11ax/ac/n/a

    • 2.4 GHz: IEEE 802.11ax/n/g/b

  • Wi-Fi Speeds:

    • 5 GHz: Up to 2402 Mbps (802.11ax)

    • 2.4 GHz: Up to 574 Mbps (802.11ax)

  • Wi-Fi Modes: Infrastructure mode

  • Security Protocols: 64/128-bit WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK, 802.1x

  • Modulation: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

  • Transmit Power:

    • 5 GHz: 27 dBm (FCC) / 23 dBm (CE)

    • 2.4 GHz: 26 dBm (FCC) / 20 dBm (CE)

  • Reception Sensitivity:

    • Varies by modulation and bandwidth (see detailed sensitivity levels in product datasheet)

System & Environmental

  • OS Compatibility: Windows 10 (64-bit) only

  • Certifications: CE, FCC, RoHS

  • Operating Temperature: 0℃~40℃ (32℉~104℉)

  • Storage Temperature: -40℃~70℃ (-40℉~158℉)

  • Humidity: 10%~90% Operating, 5%~90% Storage (non-condensing)

Package Contents

  • 1 × Archer TX55E PCIe Wi-Fi 6 Adapter

  • 2 × High-Gain External Antennas

  • 1 × Low-Profile Bracket

  • 1 × Standard Bluetooth Header Cable

  • 1 × Quick Installation Guide

Product form

Upgrade your desktop with next-generation connectivity using the Archer TX55E PCIe Wi-Fi 6 Adapter. Powered by an Intel® Wi-Fi 6... Read more

SKU: DP08-0701-WACD

$84.99

  • Shipped today? Order within: Sep 06, 2025 12:00:00 +1000
  • Free shipping on all orders
  • No hassle returns 30 days return
  • Next day delivery is available for select areas
  • Pay with Apple pay, Google Pay and Credit Card
Icon for delivery_box_2Shipping & Delivery

Orders can be returned or exchanged within 30 days of receiving the parcel, providing they are in original resalable condition.

Icon for questionCustomer Support

Available between 10am to 4.30pm. Ready to answer your questions.

Description

Upgrade your desktop with next-generation connectivity using the Archer TX55E PCIe Wi-Fi 6 Adapter. Powered by an Intel® Wi-Fi 6 chipset, this advanced network card delivers ultra-fast speeds up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, effectively breaking the gigabit barrier. Equipped with Bluetooth 5.2 and dual high-gain external antennas, it ensures broader coverage, smoother gaming, faster downloads, and seamless streaming. Ideal for users seeking speed, stability, and future-ready wireless performance.

Features

  • Unrivalled Wi-Fi 6 Speed: Achieve up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz—perfect for ultra-fast downloads and 4K streaming.

  • Intel® Wi-Fi 6 Chipset: Delivers exceptional wireless performance with low latency and better device efficiency.

  • Dual High-Gain Antennas: Extend your Wi-Fi coverage for more stable and far-reaching connections.

  • Bluetooth 5.2 Support: Faster speed and broader range compared to previous Bluetooth versions.

  • Enhanced Security: Features the latest WPA3 protocol for advanced data and password protection.

  • Wider Compatibility: Backward compatible with 802.11 a/b/g/n/ac networks.

  • Premium Build Quality: Gold-plated components improve heat resistance and operational stability.

  • Low Profile Bracket Included: Designed to fit small or slim PC cases.

Specifications

Hardware Features

  • Dimensions: 2.4 x 1.4 x 0.45 in (55 x 36 x 11.5 mm)

  • Chipset: Intel® Wi-Fi 6

  • Antenna Type: Two High-Gain Dual Band External Antennas

Bluetooth Features

  • Standards Supported: Bluetooth 5.2, 5.0, 4.2, 4.0

  • Interface: F_USB 2.0

Wireless Features

  • Wireless Standards:

    • 5 GHz: IEEE 802.11ax/ac/n/a

    • 2.4 GHz: IEEE 802.11ax/n/g/b

  • Wi-Fi Speeds:

    • 5 GHz: Up to 2402 Mbps (802.11ax)

    • 2.4 GHz: Up to 574 Mbps (802.11ax)

  • Wi-Fi Modes: Infrastructure mode

  • Security Protocols: 64/128-bit WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK, 802.1x

  • Modulation: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

  • Transmit Power:

    • 5 GHz: 27 dBm (FCC) / 23 dBm (CE)

    • 2.4 GHz: 26 dBm (FCC) / 20 dBm (CE)

  • Reception Sensitivity:

    • Varies by modulation and bandwidth (see detailed sensitivity levels in product datasheet)

System & Environmental

  • OS Compatibility: Windows 10 (64-bit) only

  • Certifications: CE, FCC, RoHS

  • Operating Temperature: 0℃~40℃ (32℉~104℉)

  • Storage Temperature: -40℃~70℃ (-40℉~158℉)

  • Humidity: 10%~90% Operating, 5%~90% Storage (non-condensing)

Package Contents

  • 1 × Archer TX55E PCIe Wi-Fi 6 Adapter

  • 2 × High-Gain External Antennas

  • 1 × Low-Profile Bracket

  • 1 × Standard Bluetooth Header Cable

  • 1 × Quick Installation Guide
