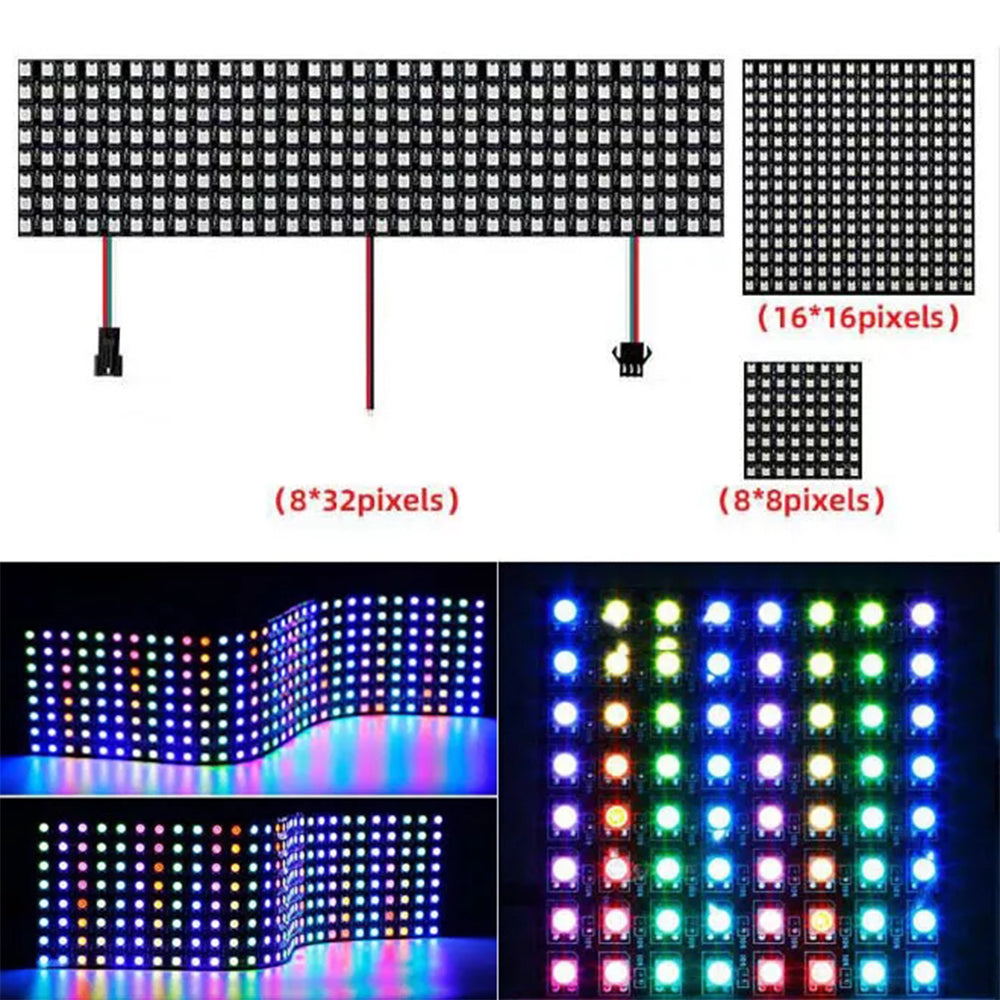

DC5V WS2812B Flexible LED Panel Matrix Display Screen Addressable Light

Description

The WS2812B Digital RGB LED Panel delivers stunning dream-color lighting with full individual pixel control. Each SMD5050 LED is embedded with a WS2812B IC, enabling precise, addressable color effects. Powered by 5V DC and fully compatible with Arduino and other programmable controllers, this panel is ideal for building LED screens, walls, advertising boards, and creative lighting installations. With flexible design and easy installation, the panel can be cut, bent, and customized to fit your projects. When paired with a controller (not included), it supports hundreds of dynamic effects such as flowing water, raindrops, curtain-up, jump flash, and custom animations edited via software like CorelDraw, Flash, or LedEdit.

Features

  • Individually Addressable Pixels – Each LED can display its own color independently.

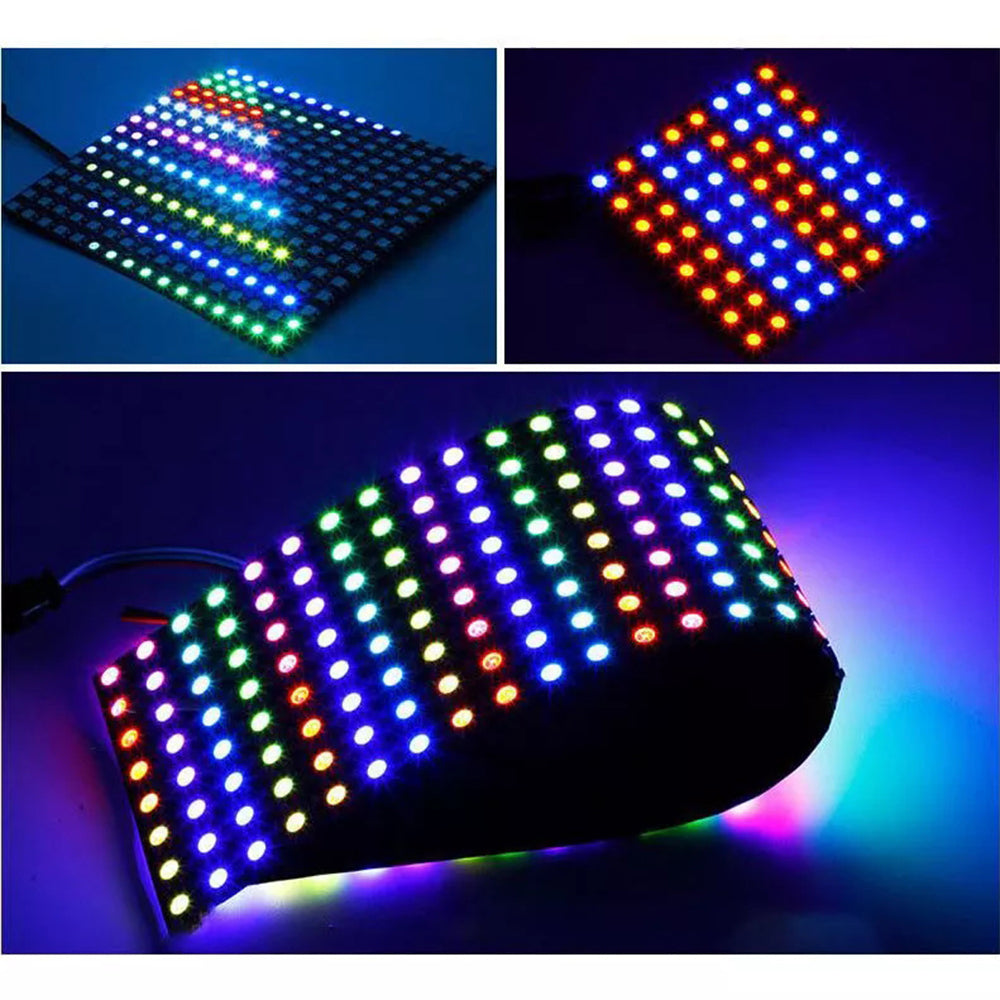

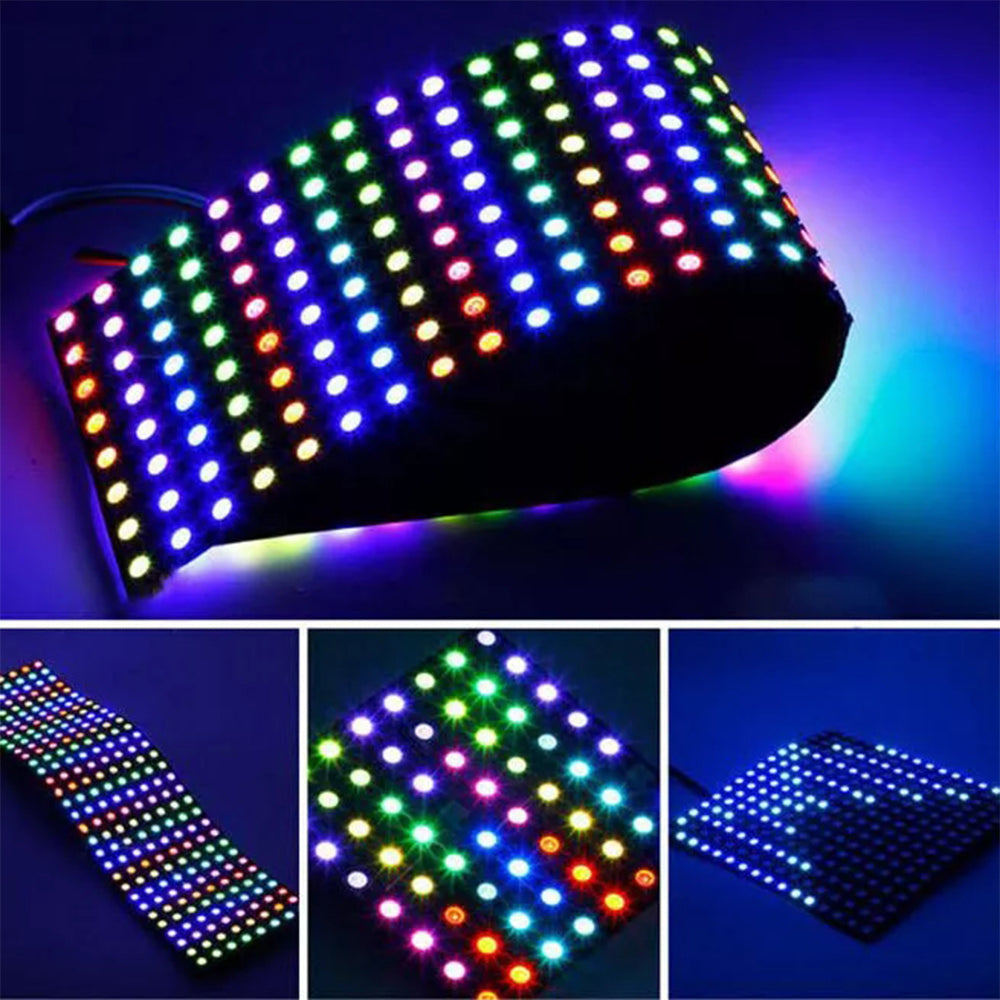

  • Dream Color Effects – Supports rich animations and dynamic patterns.
  • Arduino Compatible – Easily programmable with Arduino or external controllers.

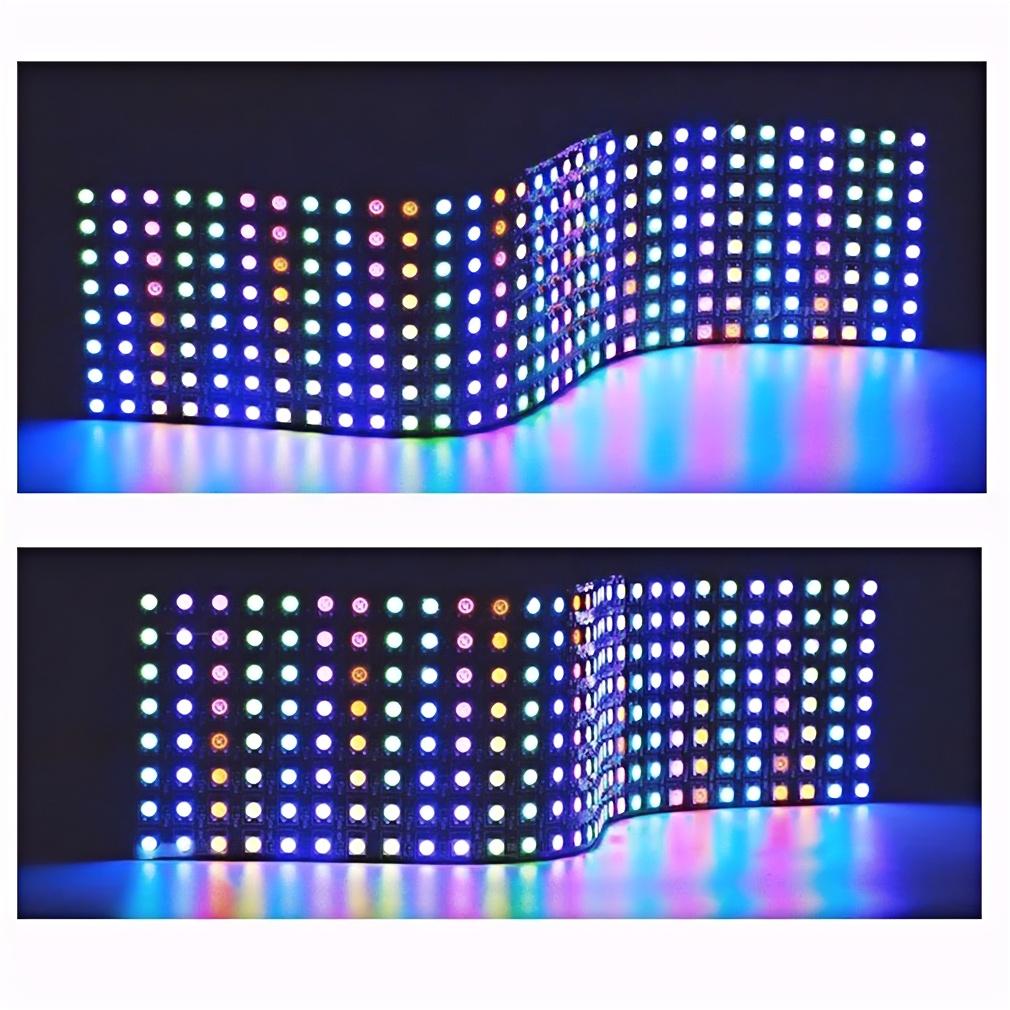

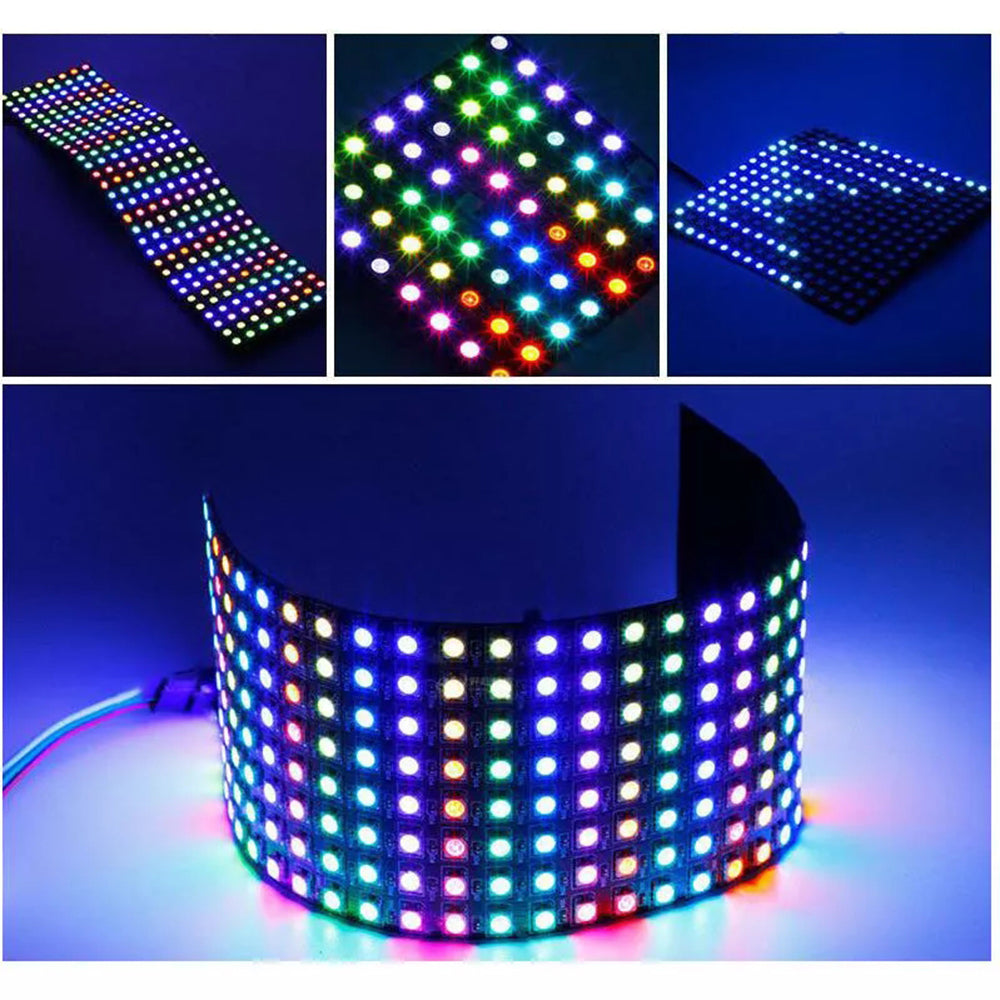

  • Flexible Installation – Can be cut and bent to suit various applications.
  • High Brightness & Multi-Color Output – Produces vivid and smooth RGB colors.
  • Versatile Applications – Ideal for LED screens, walls, signs, and decorative lighting.

Specifications

  • LED Type: WS2812B SMD5050 RGB
  • Emitting Color: Pixel RGB (multi-color, digital addressable)

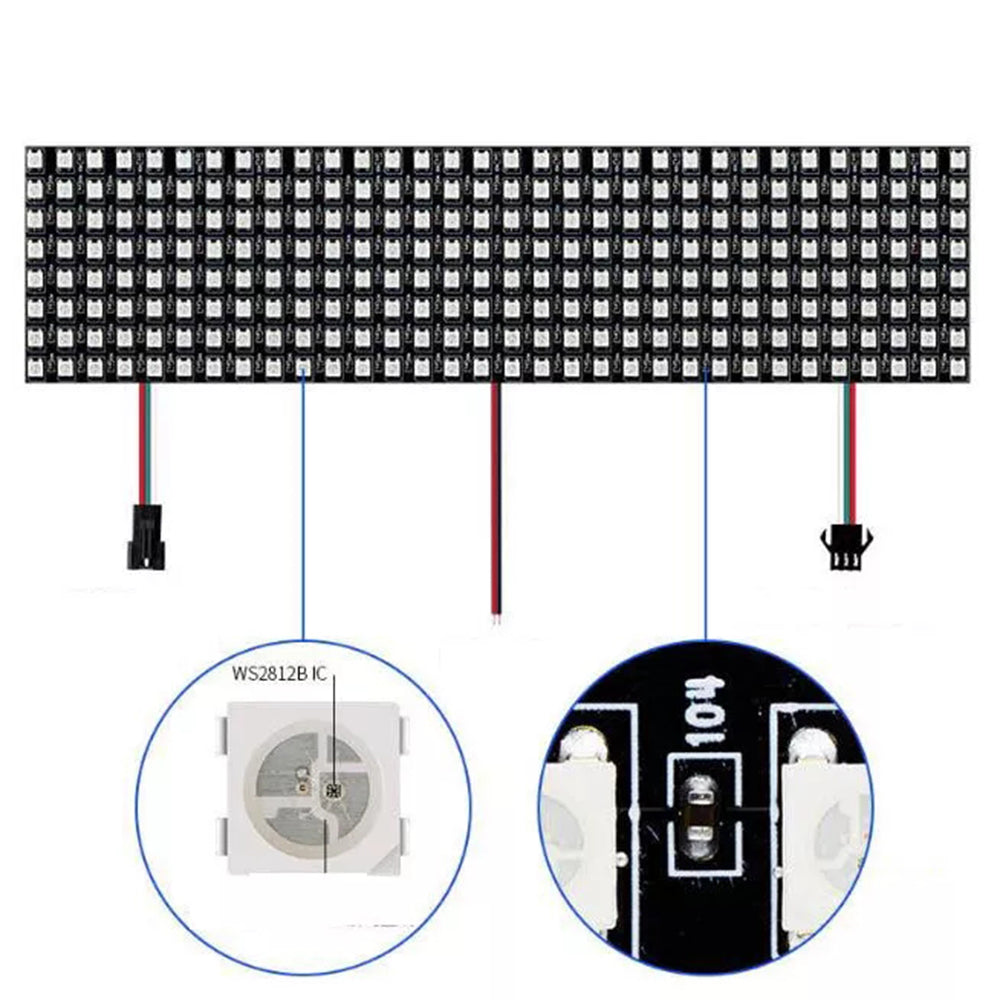

  • IC Type: WS2812B (built-in per LED)
  • Working Voltage: DC 5V
  • Power Consumption: 0.3W per pixel
  • Waterproof Rating: Non-waterproof
  • Control Mode: External controller (Arduino compatible, not included)

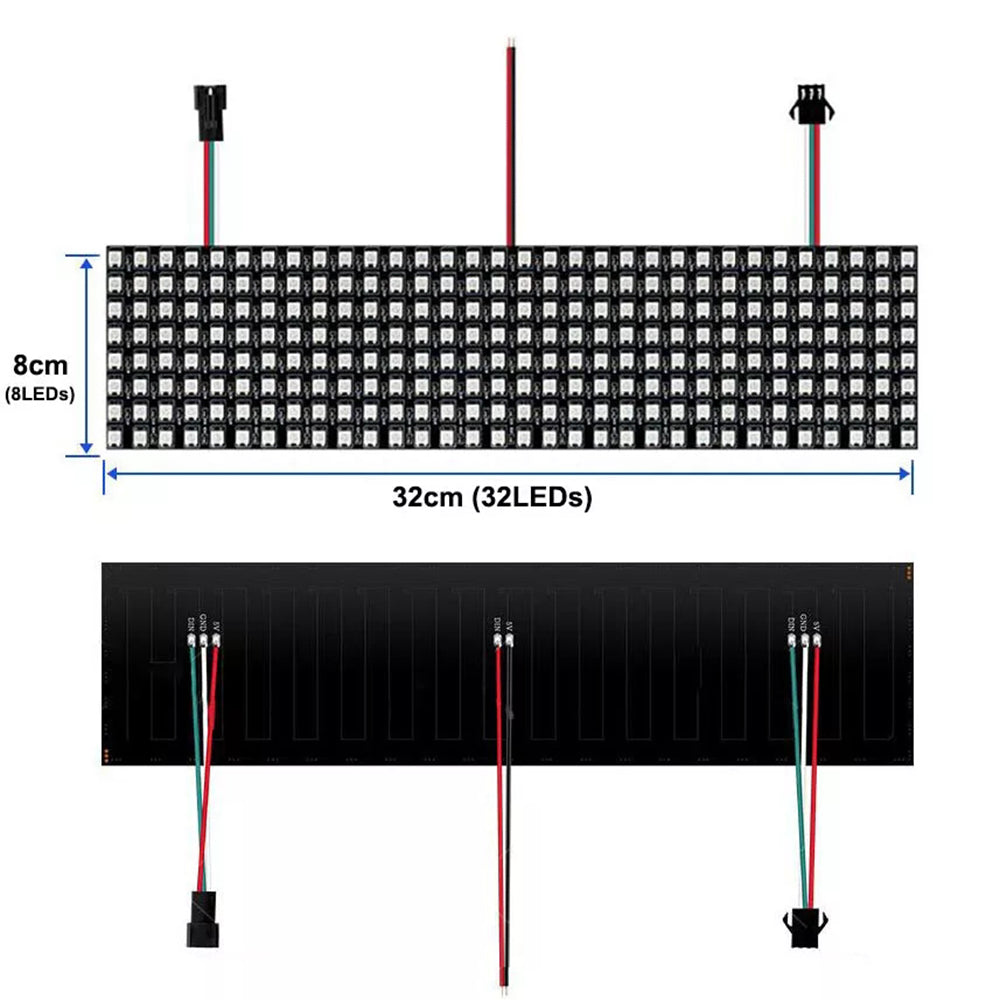

  • Connection Wires: VCC = Red, GND = White, Data = Blue
  • PCB Color: Black

Package Contents

  • 1 × WS2812B LED Panel
  • 1 × 3-pin JST Connector
