VK-162 USB GPS Receiver GPS Module With Antenna USB interface G Mouse AU Stock

Description

The G-MOUSE is a fully functional satellite positioning receiver. Equipped with a built-in satellite receiving antenna and core, it delivers all-round performance, meeting the strict requirements of both industrial-level positioning tasks and personal use scenarios.

Features

  • Serves as a complete satellite positioning receiver with integrated satellite receiving antenna and core.
  • Offers all-round functions, suitable for both industrial-level positioning and personal use.

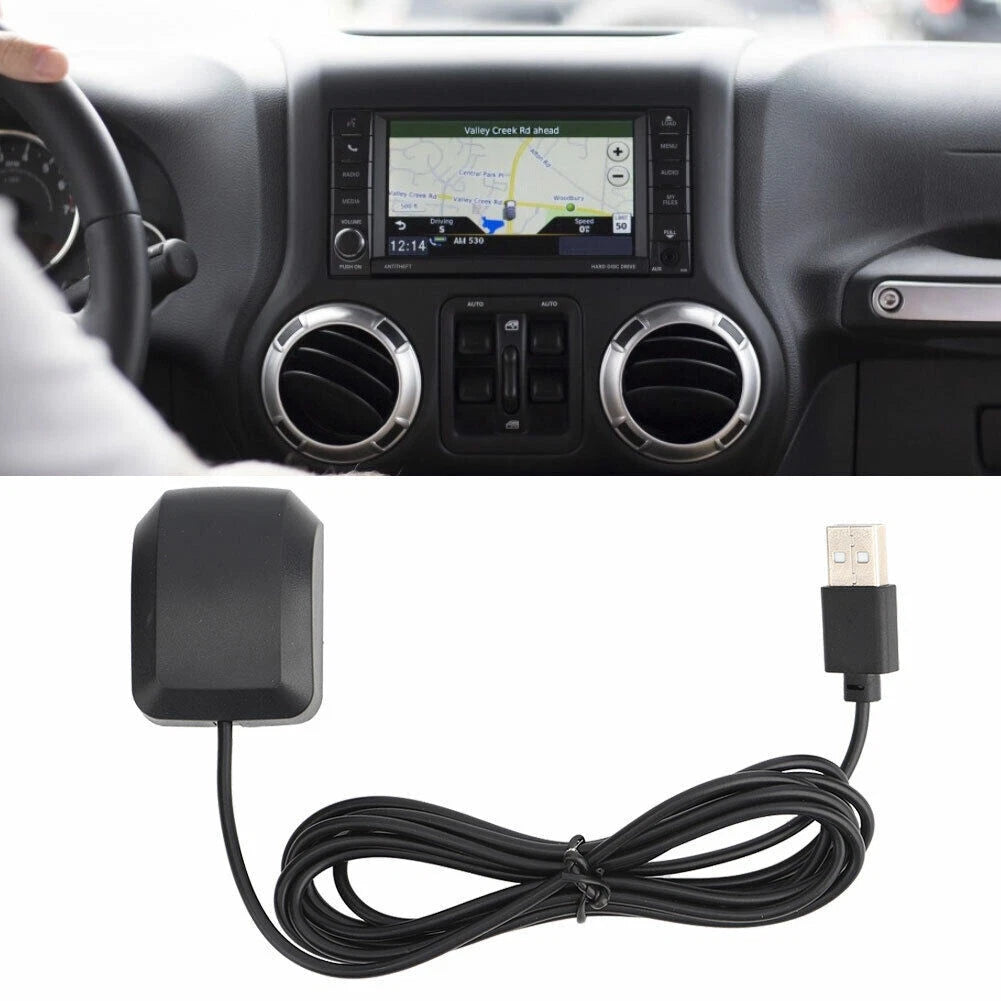

  • Boasts a wide application range, including car navigation, car anti-theft systems, bus stations, car DVRs, car video surveillance, car DVD navigation, DVRs, car audio, car monitoring, vehicle terminals, tracking devices, security systems, personal positioning, various investigations, and agricultural use.

Specifications

  • Model: VK-162
  • Receiving band: L1 (1575.42MHz)
  • Tracking channel: 50
  • DGPS support: WAAS, EGNOS, and MSAS
  • Positioning performance: 5m (average) for 2D plane; 3.5m (average) for 2D plane with DGPS assistance
  • Drift: <0.02m/s; Timing accuracy: 1us
  • Reference coordinate system: WGS-84
  • Max altitude: 18,000 meters; Max speed: 500m/s; Max acceleration: <4g
  • Electrical properties: Tracking sensitivity (-160dBm), Capture sensitivity (-146dBm)
  • Start-up & recapture time: Cold start (32s, average), Warm start (32s, average), Hot start (1s, average), Recapture time (0.1s, average)
  • Operating temperature: -30°C to +80°C

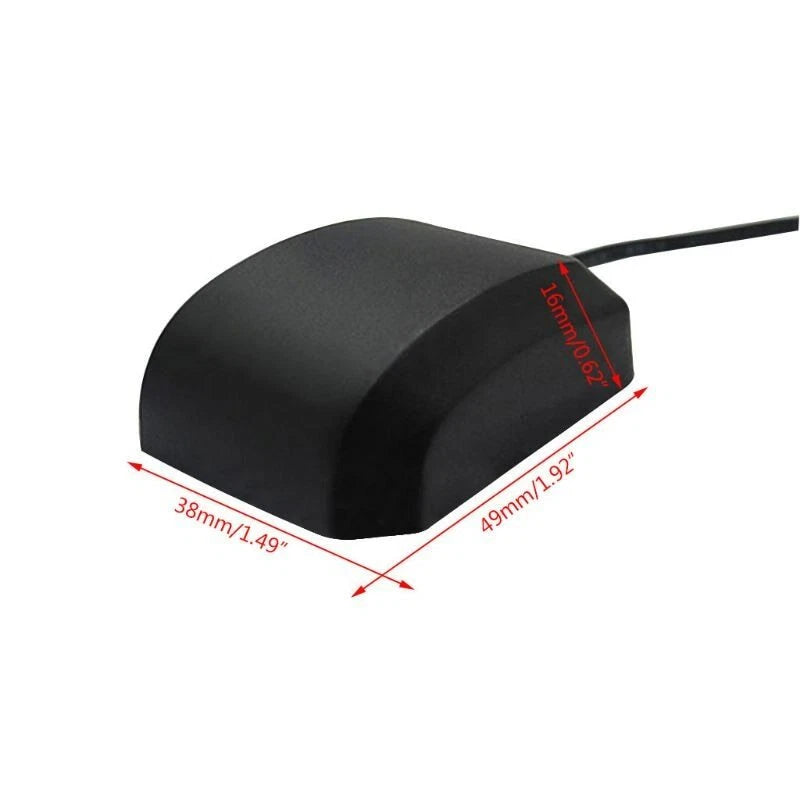

  • Package size: 49 x 38 x 16mm; Line length: 2m

Package Contents

  • 1 x GPS Receiver (G-MOUSE)

Please note: We're unable to deliver to PO Boxes or Parcel Lockers. A physical street address is required for all orders.

Product form

The G-MOUSE is a fully functional satellite positioning receiver. Equipped with a built-in satellite receiving antenna and core, it delivers... Read more

SKU: DP08-50904-VKRC

$37.69

  • Shipped today? Order within: Oct 10, 2025 12:00:00 +1100
  • Free shipping on all orders
  • No hassle returns 30 days return
  • Next day delivery is available for select areas
  • Pay with Apple pay, Google Pay and Credit Card
Icon for delivery_box_2Shipping & Delivery

Orders can be returned or exchanged within 30 days of receiving the parcel, providing they are in original resalable condition.

Icon for questionCustomer Support

Available between 10am to 4.30pm. Ready to answer your questions.

Description

The G-MOUSE is a fully functional satellite positioning receiver. Equipped with a built-in satellite receiving antenna and core, it delivers all-round performance, meeting the strict requirements of both industrial-level positioning tasks and personal use scenarios.

Features

  • Serves as a complete satellite positioning receiver with integrated satellite receiving antenna and core.
  • Offers all-round functions, suitable for both industrial-level positioning and personal use.
  • Boasts a wide application range, including car navigation, car anti-theft systems, bus stations, car DVRs, car video surveillance, car DVD navigation, DVRs, car audio, car monitoring, vehicle terminals, tracking devices, security systems, personal positioning, various investigations, and agricultural use.

Specifications

  • Model: VK-162
  • Receiving band: L1 (1575.42MHz)
  • Tracking channel: 50
  • DGPS support: WAAS, EGNOS, and MSAS
  • Positioning performance: 5m (average) for 2D plane; 3.5m (average) for 2D plane with DGPS assistance
  • Drift: <0.02m/s; Timing accuracy: 1us
  • Reference coordinate system: WGS-84
  • Max altitude: 18,000 meters; Max speed: 500m/s; Max acceleration: <4g
  • Electrical properties: Tracking sensitivity (-160dBm), Capture sensitivity (-146dBm)
  • Start-up & recapture time: Cold start (32s, average), Warm start (32s, average), Hot start (1s, average), Recapture time (0.1s, average)
  • Operating temperature: -30°C to +80°C
  • Package size: 49 x 38 x 16mm; Line length: 2m

Package Contents

  • 1 x GPS Receiver (G-MOUSE)

Please note: We're unable to deliver to PO Boxes or Parcel Lockers. A physical street address is required for all orders.
